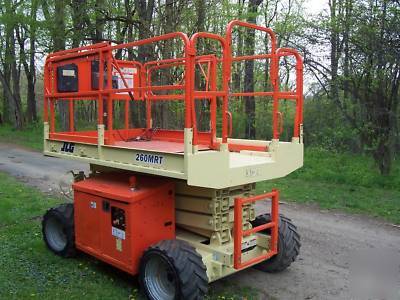

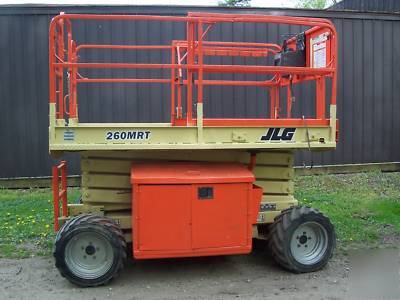

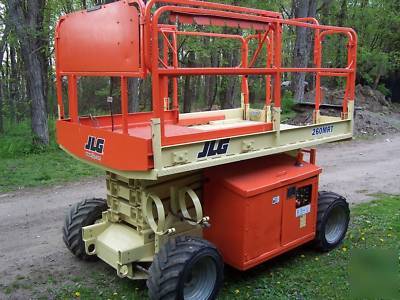

Jlg scissor lift 260MRT 4X4 dual fuel scissorlift
IF YOU HAVE ANY QUESTIONS FEEL FREE TO CONTACT ME.
A. Platform Height Elevated 26 ft (7.92 m)
B. Platform Height Lowered 4 ft 1.5 in. (1.26 m)
C. Platform Railing Height 3 ft 7.5 in. (1.1 m)
D. Overall Height 7 ft 9.5 in. (2.37 m)
E. Platform Size 65 x 102 in. (1.65 x 2.59 m)
F. Platform Extension 4 ft (1.22 m)
G. Overall Width 5 ft 9 in. (1.75 m)
(no outriggers) 8 ft 9 in. (2.67 m)
I. Wheelbase 6 ft 6 in. (1.98 m)
J. Ground Clearance 8 in. (20 cm)
Platform Capacity 1,250 lb (567 kg)
Capacity on Deck Extension 300 lb (136 kg)
Maximum Drive Height Full Height
Gross Vehicle Weight 7,360 lb (3,338 kg)
Drive Speed-Lowered 3.5 mph (5.6 kmph)
Drive Speed-Elevated 0.4 mph (0.6 kmph)
Turning Radius (inside) 84 in. (2.13 m)
Tire Size/Type 26 x 12 Lug Tread
Brakes Spring Applied Hydraulically Released
Dual Fuel Engine Kubota 24.5 hp (18.3 kW)
Diesel Engine Kubota 22.5 hp (16.8 kW)
Fuel Tank Capacity 7.5 gal. (28.39 L)
Hydraulic Reservoir 15 gal. (56.78 L)
m i n i r o u g h t e r r a i n
