#3A-147 osborn deburring & finishing machine #23901

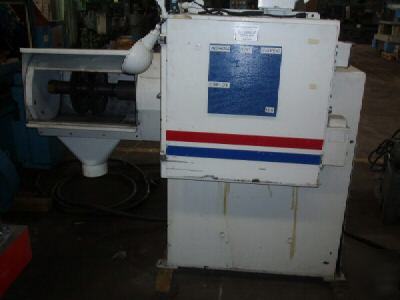

#3A-147 OSBORN DEBURRING & FINISHING MACHINE
Serial No E-3617-A & F2787920, Model 3A-147
5 HP Osborne Production Brushing Lathe
Part Weight Capacity, Maximum............ 20 LBS.
Part Diameter Capacity, Maximum.......... 8"
Cross-Feed Adjustment.................... 6"
In-Feed Adjustment....................... 12"
Vertical Adjustment...................... 6"
Vertical Head Adjustment................. 360-DEGREES
Horizontal Head Adjustment............... 360-DEGREES
Base Rotation............................ 360-DEGREES
Work Rotation............................ 34 RPM
Motor Horsepower......................... 1/3 HP
Electrical System........................ 220-440/3/60
BRUSHING LATHE SPECIFICATIONS:
Main Motor, Horsepower/RPM............... 5 HP/1800 RPM
NOTE: This Machine Is Designed And Built To Deburr
Gears And Various Geometrically Shaped Parts.
PRICE: F.O.B. OUR WAREHOUSE............. $1,450.00
