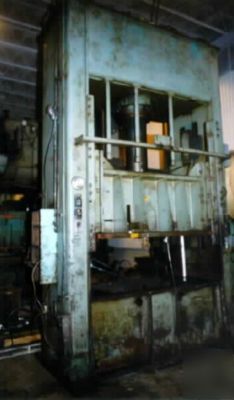

200 ton verson hydraulic press
CAPACITY: 200 TON @ 2000 PSI (20 TON LIFTING)
MAX. DAYLIGHT TO BED: 60" (55" OVER 5" BOLSTER)
MAX. SHUT HT. TO BED: 20" (15" OVER 5" BOLSTER)
BED AREA: 84" RL X 48" FB
RAM AREA W/8PT. GIBS: 84" RL X 48" FB - GIB GUIDED
RAM SPEEDS: 730/93/730 IPM
BOLSTER SIZE: 5" X 84" RL X 48" FB
HYDRAULICS: CROWN MOUNTED
50 HP MOTOR W/OILGEAR NO. DX PUMP
275 GAL. TANK
CYLINDER DIAMETER: 14-1/4"
OVERALL DIMENSIONS: 19' HIGH, 9' RL, 8' FB
APPROX. WEIGHT: 75,000 LBS.
EQUIPPED WITH: 100 TON HYD./PNEU. CUSHION NO.HP1618
16" DIA
18" STROKE
FLOOR STANDING W/O CUSHION INSTALLED
WELDED STEEL FRAME CONSTRUCTION
DOWN ACTING-SINGLE CYLINDER RAM
