Oscilloscope protek 60MHZ 6506

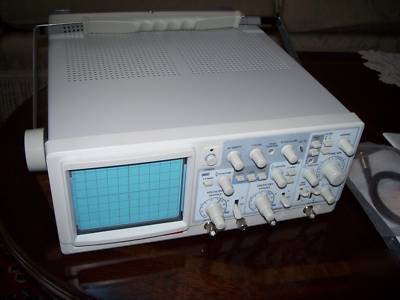

Protek 60Mhz Oscilloscope Model: 6502
Barely Used - Like New Condition

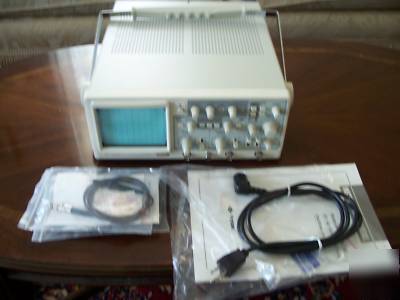

Includes: Manual, AC Power Cord, 2 X1/X10 Probes
Vertical Amplifier (CH 1 and CH 2)
5mV/Div to 5V/Div in 10 steps (1-2-5 seq)
0.1 s/Div to 0.2s/Div in 20 calibrated steps (1-2-5)
Same as CH 1 Vertical Amplifier
Int: DC to 5MHz: 0.5 Div 5MHz to 40MHz: 1.5 Div; 40MHz to 60MHz: 2.5 Div Ext: DC to 5MHz: 200mV P-P 5MHz to 40MHz: 800mV P-P
40MHz to 60MHz: 1V P-P TV: Int: 1 Div Min; Ext: 1 V P-P Min TV-H (Television Line synchronizing Freq) TV-V (Television Frame synchronizing Freq) Automatically switched by the A Time/Div Front panel control
Impedance: 1MW + 20 pF Maximum Input Volts: 300V (DC or AC peak)
5V P-P Intensity increases with a negative going voltage input
6" rectangular CRT with illuminated internal 8 X 10 Div graticule (1 Div = 1cm)
AC Input Voltage: 100V, 120V, 220V, 240V 10% selectable
Manual, AC Power cord, (2) X1/X10 Probes
