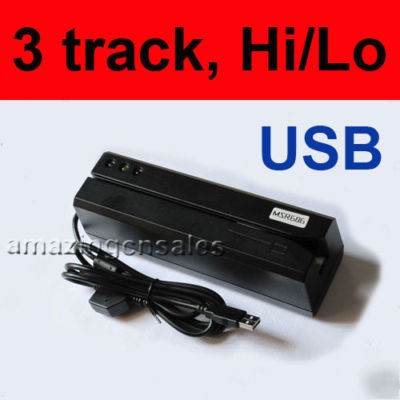

MSR606 hico magnetic card reader encoder writer MSR206
Taiwan Quality!! come with software CD & 10 mag cards - FREE MSR606 Magnetic Card Reader Writer Encoder Compatible MSR206 For Hi&Lo Co Track 1, 2 & 3
The MSR606 is designed to offer a reading and writing solution of high and/or low coercivity cards that will attractively complement an existing system.
1). Communication: Standard USB
2). 3-track version can read/write all three tracks data, 300-4000 oe
3). Program software for Windows 98/Me/XP/Vista
4). Reading/Writing magnetic stripe card complied with ISO formats
1). Body: ABS 94V-0 / Metal housing optional
2). Swipe: Manual, single direction
1). Operation: -10 C to 60 C 10 to 85% humidity, non condensing
2). Storage: -30 C to 70 C 10 to 90% humidity, non condensing
1). Current/operating Typical 350mA Max
2). 600mA plus for each writing track
3). Power supply: External switching Power, Input: 100-240VAC, Output: 24VDC 2.5A
1). Read Circuit: Track 1&3: 210bpi Track 2: 75 or 210 bpi
2). Bit per Char: 5-7 bit per char.
3). Media Speed: Read, 5-50 ips (read speed 5-40 ips for track 2 at 210bpi)
4). Media Coercivity: Read 300-4000 Oe Mag. Card
5). Jitter Card: Read bit to bit interval <+/-15% card
Write bit to bit interval <+/-10%,Sub interval<+/-12% at 30ips
6). Low amplitude Card: Read 60% for both 75& 210bpi
7). Error Rate: Read < 0.5% Write < 0.8%
8). Media Swipe: Head life 1,000,000 passes for both read & write head
9). Configuration( MSR606): Read/Write Track: 1&2&3
software CD(User Manual, USB Driver, Demo Software)
Click to see the file: User's Manual
