#HANSEAT9 blohm 14" x 36" hydraulic surface grinder '80

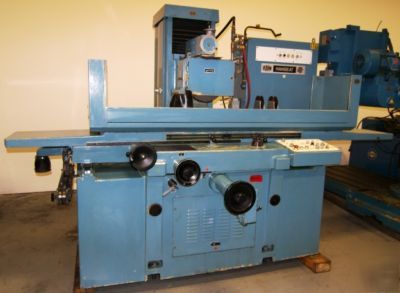

Preowned 14" x 36" BLOHM Hydraulic Surface Grinding Machine with Automatic Incremental Downfeed, Model: Hanseat 9, S/N 12056 (New 1980)
Maximum distance from table to centerline of spindle
Cross traverse of table, manual
Cross traverse of table, electrically actuated
Longitudinal traverse of table, hydraulically actuated
Automatic cross feed, electrically actuated
Automatic incremental downfeed rate adjustable
Vertical feed handwheel graduation
Vertical feed, fine feed knob reads to
.08 to 2-9/16 per stroke of table
12" diameter x 2" width x 3" bore
Hydraulically actuated longitudinal table travel
Electromechanically actuated saddle travel
Ball bearing assemblies for both table and saddle
"Finimatic" automatic incremental downfeed for both surface and plunge grinding
modes with spark out timer, automatic wheel shut-off, and wheelhead retraction
Motorized power rapid traverse to grinding wheelhead
Manually operated over-the-wheel dresser
11-7/8" x 35-3/4" Electromagnetic chuck with Electro-Matic control
5.5 H.P. 3/60/230-460 volt spindle drive motor and electrical controls
Approximate Dimensions (Machine Only):
