Nsk nakanishi high speed air turbine spindle ams-600
Nsk Nakanishi High Speed Air Turbine Spindle AMS-600

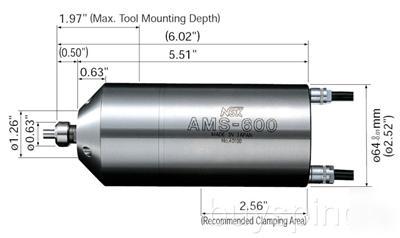

ULTRA PRECISION HIGH SPEED AIR TURBINE SPINDLE AMS-600 2.52" (64mm) 65,000 min-1(rpm)
AMS-600 Air Turbine Spindle Collet 1/4" (CH5-6.35) : 1 pc. Collet Nut (K-218) Wrench (10 x 10) : 1 pc. Pin Wrench (K-222) : 1 pc. Intake Air Hose (K-257) : 7 mm x 6 ft Exhaust Air Hose (K-258) : 8 mm x 3 ft Silencer (K-209) Filter Joint (FJ-03)
*Applicable Arbor Special Grindstone Arbor for Slots (K064761, K064762, K064763) *(Optional)
AMS-600 Air Motor Spindle Specifications
The AMS-600 is an Air Turbine powered spindle that utilizes 4 ultra-precision angular ball bearings for very high rigidity. This spindle is ideal for very high-speed small diameter drilling, milling and grinding applications.
Hose Diameter : Air Intake 7.0 mm (O.D.)
Standard Size Collet (CH5-6.35) 1/4"
Useable Max. Diameter of Grindstone 0.47"
Speed 65,000 min-1(rpm) (71PSI)
