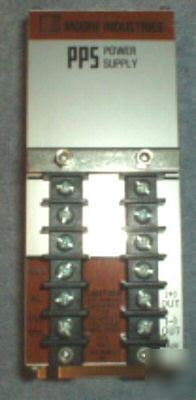

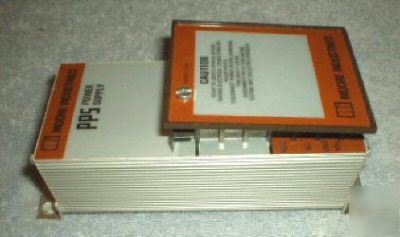

New process power supply, moore, pps, 24VDC, instrument
* Standard Housing (Rugged Aluminum with mounting bracket).
* Input: 117VAC, 7 watts, 48-62 Hz.
* Output: 24 VDC, 200 mA (50mV P-P Ripple, max.).
* Regulation: +/- 0.005% per 1% line change.
With an output of 200mA, this supply is capable of providing for several 4-20 mA 'loops' at once. It's rugged construction and tight regulation make it ideal for most common instrumentation circuits.
