Mini-circuits coaxial power splitter / combiner znapd-3
Mini-Circuits Coaxial Power Splitter / Combiner ZNAPD-3DB-1575-1

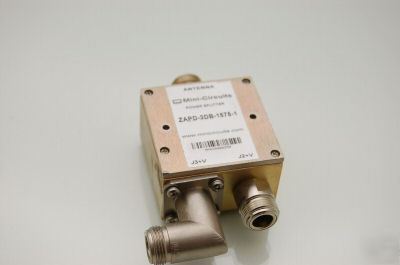

This is a Mini-Circuits ZAPD-3DB-1575-1 Coaxial Power splitter/combiner. There is no information on the ZAPD-3DB on the Mini-Circuits website, however, it is related to the ZAPD-2 and ZAPD-4 families of Mini-Circuits' products.
For information on the ZAPD-2:
http:// /pdfs/ZAPD-2.pdf
For more information on the ZAPD-4:
http:// /pdfs/ZAPD-4+.pdf
"This is an amplifier/splitter designed for GPS use - connect two GPS receivers, at least one of which supplies DC port to an active antenna, and connect the active antenna to the antenna port. The unit contains a 3db amplifier to offset the losses of the splitter. These are great if you are trying to run two GPS receivers off one active GPS antenna."
Thanks for the information - Test_Equipment_Superstore
