Hp 11721A 100 - 2600 mhz frequency doubler (reduced)

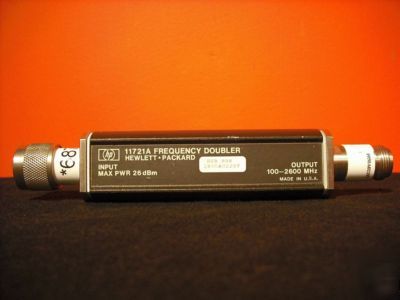

HP/Agilent 11721A Frequency Doubler
* Works with any RF source with output in the range 50 to 1300 MHz
* Low conversion loss and spurious
* Excellent flatness over the entire frequency range
* Conversion Loss (+13 dBm input, 50 to 1280 MHz) <15 dB
* Spurious Referenced to Desired Output Frequency f(+13 dBm input with Harmonics < -50 dBc, 50 to 1280 MHz) f/2, -15 dB; 3f/2, -15 dB
* Input/Output Impedance: 50 ohms nominal
