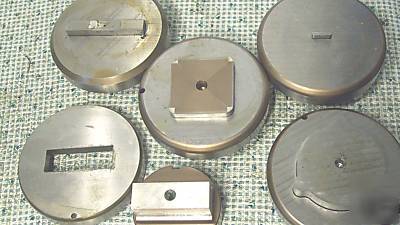

Wiedemann turret punch/die tooling 5-set 4.25"die rings
1. 2" square with .235" radius.
3. .780" X 2.250" rectangle.
4. .437" X 2.750" rectangle.
5. 2.470" round w/ 3-ears (ears stick-out about .267", from round, dia. of ears is about 7/16") .
Most all look to have .012" cutting clearence (most are marked), die rings are 4-1/4" dia. X 3/4" thick, punches have a 2-3/4" dia base X 2" +/- tall (may vary some), punches also have a 5/16" tapped hole, both punches and dies have locating pins/flats or keyways, these look sharp and very usable, good used condition.....
