New 1 pair ez form 1' rf matched coaxial cables sma -

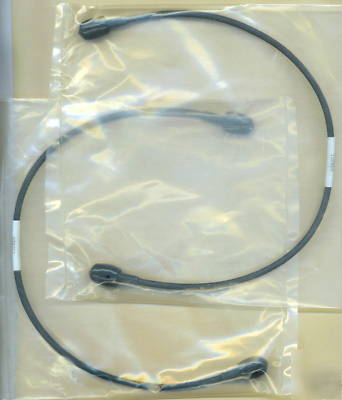

The cables are approximately one foot long, have an outer diameter of about 0.14 inches and a characteristic impedance of 50 ohms. They have a unique delay characteristic as defined on the label attached to each cable of 1510 pS.
Both cables have male SMA connectors on each end and come in their original sealed packaging.

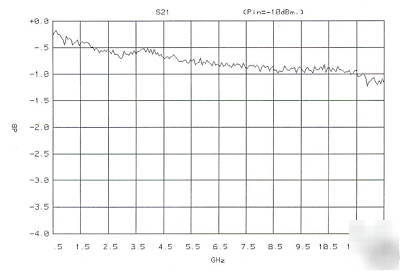

The second picture shows typical attenuation vs. frequency as measured with an HP 8719C Network Analyzer. The cables have an attenuation of about 1 dB or less up to 12.5 GHz (upper limit of instrument); very similiar to the performance of HP cable 5061-9038 (20" long) measured on the same Network Analyzer.
