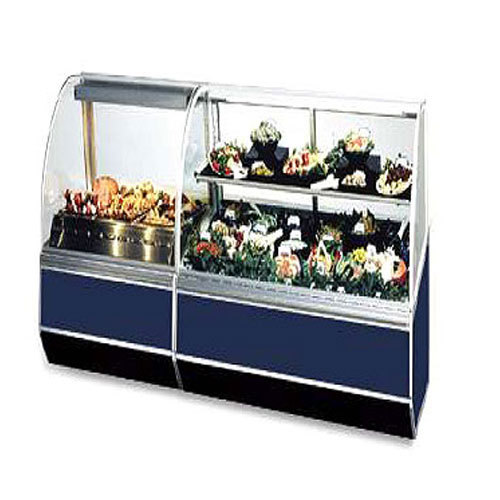

Federal sn-6CD deli case, single-duty, 72" long x 48" h
Deli Case, Single-Duty, 72" Long x 48" High, Series 90
Series 90, Refrigerated Deli Display Case, 3/4-HP
* Lift-up pneumatic, cylinder-assisted double-curve tempered front glass.
* Removable sliding rear doors and mezzanine shelf.
* Glass ends and rear doors. Rear doors are sloped for product access.
* Octron top light and mezzanine shelf lights. Lights are shielded and independently wired.
* All welded base construction with a choice of six standard laminates on base.
* Easily accessible control panel with main power switch, light switch, digital thermometer, and adjustable temperature control.
* Neutral beige acrylic PVC trim. Trim does not show scratches and is very easy to clean.
* Double bend tempered front glass reduces glare from outside lighting.
* Case height is only 48" high allowing better interaction
* White display deck and mezzanine shelf. On the four and six foot model, one full length mezzanine shelf is provided. The eight foot model comes with two four foot shelves.
* Condensate evaporator for a totally self-contained system.
* Average case temperature of 36 to 38 is maintained without condensation on the front glass.
* Over-sized coil and low velocity fan system maintains high humidity and product freshness.
* Pull out condensing unit for quick and easy service.
* Appliance receptacle provided on the back of the case for a cash register, scale, or slicer.
* Self Contained 3/4 HP - 15 AMPS
