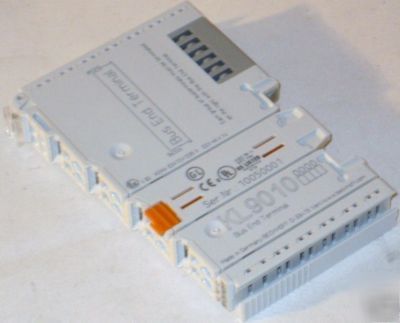

Beckhoff KL9010 k-bus end terminal 24VDC 24 vdc 24V dc
This listing is for a logic control device.
* Cat / Model / Part # 1: KL-9010 (KL9010)
* Description: K-Bus End Terminal
* The KL9010 K-Bus end terminal is necessary for data exchange between the Bus Coupler and the Bus Terminals.
* Each Bus Terminal block has to be terminated at the right hand end with a K-Bus end terminal.
* The K-Bus end terminal KL9010 does not have any other function or connection facility.
* Current consumption from the K-Bus -
* Electrical isolation 500 Veff (K-Bus/signal voltage)
* Bit width in the process image -
* Configuration no address or configuration settings
* -0 C ... +55 C Permissible ambient temperature range (during operation)
* -25 C ... +70 C (during storage)
* Permissible relative humidity 5% ... 95%, no condensation
* EMC resistance burst / ESD conforms to EN 61000-6-2 / EN 61000-6-4
* Vibration / shock resistance conforms to EN 60068-2-6 / EN 60068-2-27, EN 60068-2-29
* Installation pos. Variable
The manufacturer's product sheet is located at http:// /download/Document/BusTermi/BusTermi/KL9010e.pdf
