Smar fp 302 fieldbus pneumatic signal converter FP302
Drum Barrel Container Tank Sump Hand Pump Sampling Device

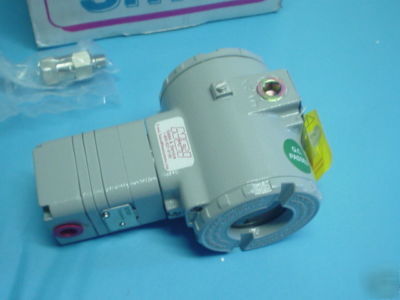

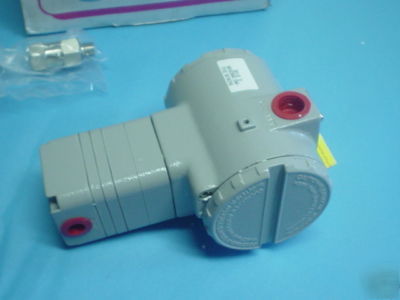

This Brand New FP302 Foundation Fieldbus to Pneumatic Signal Converter

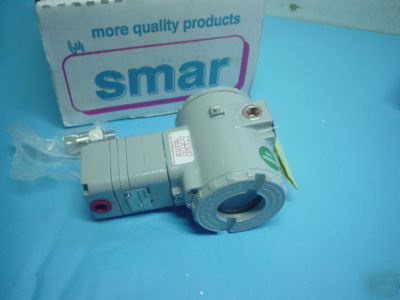

We have a few of these available, all are brand new. Some of the boxes are in poor condition, but the FP302 s are 100% new and in perfect condition.

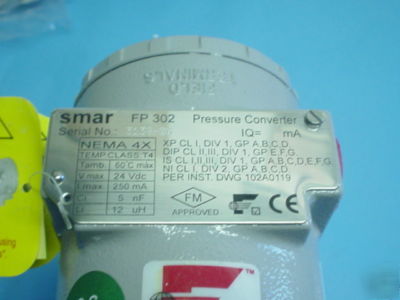

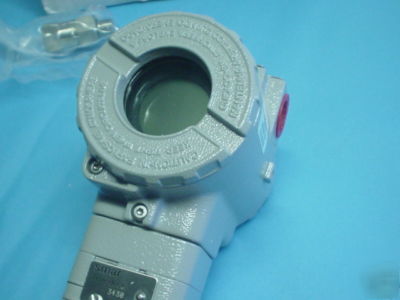

The calibration date is Jan 2006, Software Verson 3.42 G1 Option 3 (Min) to 30 (Max) PSI, with the digital indicator, 1/2" 14 NPT connector
In order to connect existing valve actuators to a FIELDBUS system, SMAR developed a FIELDBUS to pneumatic signal converter, with very low air consumption and a very stable output signal. A 0 to 100% digital signal from the FIELDBUS is converted into a 3 to 15 psi pneumatic signal according to a characteristic curve selected by the user. Besides the normal PID control function, linearization, master capability, alarms and damping, the FP302 offers signal limitation and reversing and many other features for valve actuation:
Air consumption: 0.15 scfm (20 psi supply pressure);
The built-in volume booster allows high air capacity (4 SCFM);
Can be mounted in any position;
Accuracy: 0.4 % of the span.
Communication Digital only, Foundation Fieldbus, 31.25 kbit/s voltage mode with bus power
Output 3-15 psi (0,2-1,0 kg/cm )
Output Capacity 6.7 Nm /h (4 scfm)
Power Supply Bus powered: 9-32 Vdc
Power Consumption Quiescent 12 mA
Configuration Using local adjustment magnetic tool if device is fitted with LCD display. Complete configuration possible using PC software interface.
Power Supply 18-22 psi (1,2-1,5 kg/cm )
Material Injected low copper aluminum with polyester painting or 316 stainless steel housing
Process Temperature Limits -40 to 85 C (-40 to 185 F)
Ambient Humidity Limits 0 to100 % RH
Hazardous Area Certification Explosion proof, weather proof and intrinsically safe
Mounting Wall, panel, or 2" pipe with optional bracket
