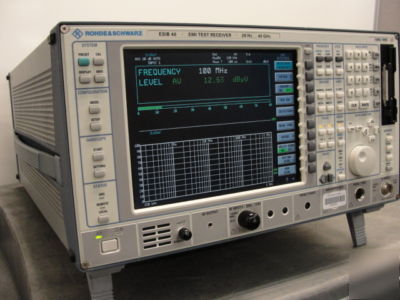

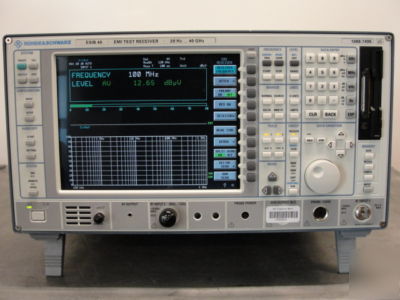

R&s ESIB40 emi test receiver 20 hz - 40 ghz w/ options


20 Hz - 40 GHz *OPTION B16 & B18*
The R&S ESIB40 combines the high sensitivity, large dynamic range and selectivity of a high-end EMI test receiver with the flexibility and speed of a top-class spectrum analyzer. The R&S ESIB family of EMI test receivers fully comply with the basic standard CISPR 16-1-1 and carry out measurements in conformance with all civil and military EMI standards such as CISPR, EN, VDE, ANSI, FCC, BS, ETS, VCCI, MIL-STD, VG, DEF-STAN, etc.
The Rohde & Schwarz ESIB40 offers outstanding performance:
* Frequency range 20 Hz to 40 GHz
* Very high sensitivity (NF typ. 10 dB)
* Excellent large-signal immunity (1 dB comp.: +10 dBm)
* Low measurement uncertainty (< 1 dB up to 1 GHz)
* High measurement speed and result processing (min. meas. time 100 s)
* Low inherent noise (< 3 dB V)
Each R&S ESIB offers features and test routines for the various stages of product development as well as for the final EMC certification tests. The main users of the R&S ESIB are:
* EMC test houses and service providers
* Governmental organizations
* Safety standard authorities
* Large industrial development and EMC labs (e.g. automotive)
Features of the R&S ESIB40 EMI Receiver include:
* Fast scanning in test receiver mode and sweeping in spectrum analyzer mode
* Compliant with CISPR 16-1-1
* Two RF inputs Input 2 with additional pulse protection (20 Hz to 1 GHz)
* Integrated 20 dB preamplifier (selectable) 1 kHz to 7 GHz as standard; >7 GHz as option R&S ESIB-B2
* Preselection in receiver mode (fixed) and analyzer mode (selectable)
* Resolution bandwidths meeting MIL standards and CISPR 16 specifications in analyzer mode, -3 dB RBWs and -6 dB RBWs selectable
* Parallel detectors Peak, average, quasi-peak, CISPR average and RMS (max. four simultaneously)
* Automatic overload detection & autoranging
* Editors for user-definable transducer factors/sets and limit lines incl. integrated transducer factor/limit line libraries
* Internal test routines for automated or interactive preview & final measurements
* Evaluation functions for prescan, data reduction (peak list) and final measurement
* Split screen display (mixed analyzer/receiver mode) for detailed signal analysis
* Convenient scan table editor Up to ten subranges with individual parameter setting
* Automatic scan and display of traces in parallel (receiver mode) Max. four traces with up to 80.000 samples each (250.000 samples with one trace)
* Time-domain measurements (zero span) at up to 50 ns resolution for interference source analysis
Additional highlights of the R&S ESIB40 include:
* Extensive self-calibration routines including result documentation

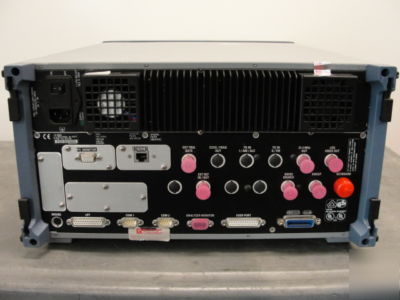

* Interfaces: IEC/IEEE, serial, parallel, LAN (optional)
* Comprehensive marker evaluation functions search, delta, tune-to-marker, marker track
* Integrated controller function under Windows NT 4.0 printer-driver compatibility, easy hardcopy capabilities, quick firmware update
* Internal tracking generator up to 7 GHz (option R&S FSE-B10)
* Bright 24 cm LC color display
* Noise display (30 Hz to 100 kHz) with magn. coil R&S HZ-10
Installed OPTIONS on this unit include:
This R&S ESIB40 is also available for RENTAL - Call (***) 806-6600 to RENT this item.
