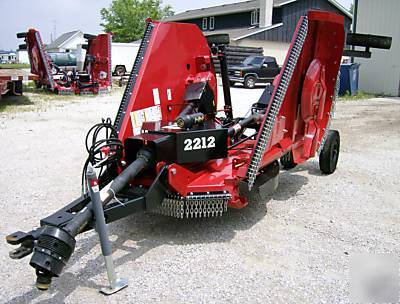

2009 bush hog 2212 flex wing rotary mower cutter
New Bush Hog 2212 Flex Wing Rotary Cutter
Recommended Tractor HP 50 to 75 PTO
* Cutting Capacity 1 1/2 inch diameter
* Cutting Height 2 to 14 inches
* Overall Width and Length (from Clevis to Wheel Hub at Transport Height) 12 ft 8 inches x 13 ft 3 inch
* Transport Width (from wing skid to wing skid) 5 ft 8 inches
* Side Bands 7 gauge x 12 inches
* Gearbox HP 160 -Transfer, 75 - Center, 75 - Wings
* PTO Driveline ASAE Cat. 4 (540 RPM)
* Wing Driveline ASAE Cat. 3
* Slip Clutches (3) Multiple Plate Clutches
* Blade Tip Speed 15,604 FPM
* Blades 1/2 x 4 inch Uplift with 6 inch Overlap
* Type Hitch Self Leveling with Swivel Clevis
* Wing Flex (Operating) 87 Up to 22 Down
* Tires Choice of Laminated Tire, Used Aircraft Tire,
* or Pneumatic 15 inch Wheel
* Axles Greaseable pivot points with bushings
* Wheel Shock Protection Springs on Center Section
* Deflectors Banding and Belting; Chains Optional
* Options Chain Shielding, Valve & Stand Kit
* Warranty 1 year limited warranty with a 5 year gearbox limited warranty
* Driveline safety retaining rings.
Call us if you have questions at (***)-889-4135.
Delivery is available at $3 per one-way mile.
