Agilent 54620C logic analyzer w/ 54659B
Agilent 54620C Logic Analyzer w/ 54659B

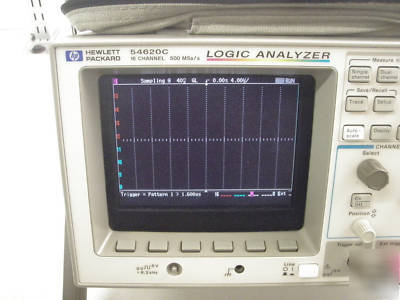

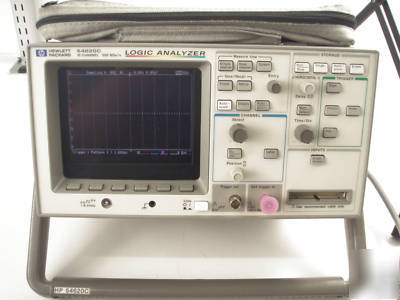

The Agilent 54620C logic analyzer looks, feels and runs like a scope because you told us to design it that way. You told us you liked the troubleshooting benefits of logic analysis but didn't have the time to learn a traditional logic analyzer (and relearn it every time you had to use it again). So we built the Agilent 54620C on a scope platform with a familiar front panel and a fast, responsive display - and this "C" model offers color. Now you can stop trying to troubleshoot complex digital circuits with your scope - but keep the familiar user interface of your scope.
Now, with the use of color on the "C" model's 16-channel display, your view of multi-channel signal activity is enhanced so troubleshooting and debugging are faster and easier. You can even choose which colors you want to apply to certain channels. Show data channels with one color, read/write lines in another.
* Maximum sample rate: 500 MSa/s
* Autoscale instantly shows you all active signals, scaled for easy viewing
* Triggering modes: edge, pattern and advanced (including duration times and sequences)
* Trigger on all input lines and external trigger
* Automated measurements of frequency, period, duty cycle, width, delay, and setup and hold time
FFT feature allows you to analyze your signal in the frequency domain
Adds an RS-232 & parallel interface and remote programming capability
Can store up to 100 traces in nonvolatile memory
Adds unattended waveform monitoring - can store out-of-limit traces

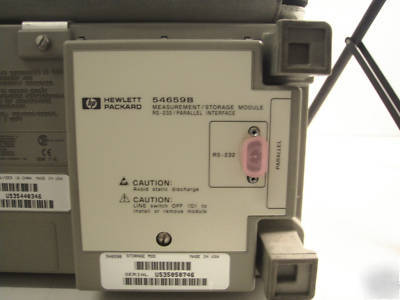

The HP Agilent 54659B is compatible with Agilent 54600B-series scopes and the Agilent 54645A/D. The HP Agilent 54659B can be used with the Agilent 54620A/C logic analyzers for I/0 only.
