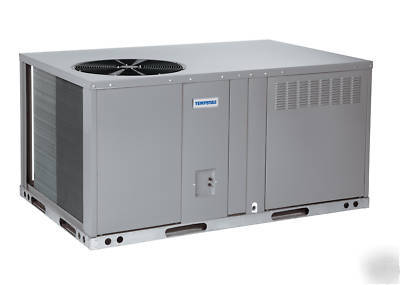

7.5 ton commercial package heat pump R22 day & night
COMMERCIAL HIGH EFFICIENCY PACKAGE HEAT PUMP UNITS
R 22, SINGLE PACKAGE ROOFTOP, 7.5 TONS
BUILT TO LAST, EASY TO INSTALL AND SERVICE
One piece, high efficiency heat pump with a low profile, prewired, tested, and charged at the factory.
* Field convertible supply and return openings (036 120) are intended for installation on a roof top or ground level.
* Hermetic type scroll compressor, single compressor on 036 072 models, dual compressors on 090 120 models. Semi hermetic single compressor on size 156, dual semi hermetic compressors on size 180.
* Two speed belt motors on sizes 036 060. Belt drive with variable pitch pulley on sizes 072 120
* Non corrosive condensate pan on 036 120 models with choice of bottom or side drain connections.
All models have self draining sloping design.
Refrigeration system: Loss of charge, freeze protection, and high pressure safety switches
* Single point electrical connections on field installed electric heat units
* Adjustable belt drive indoor fan standard, with permanently lubricated motors
* Direct drive propeller outdoor fan totally enclosed with permanently lubricated bearings
* Prepainted, galvanized steel cabinet with primer inner panels, certified at 500 hr salt spray test and noncorrosive screws
* Easily removable panels provide ready access to components for removal or maintenance
* Two inch disposable type return air filters in dedicated rack with filter access door requiring no tools
* Outdoor temperature cooling operation down to 25 F and up to 125 F
* Fixed orifice metering devices to precisely control refrigerant flow
* State of the art defrost control board, easily configured for defrost cycles at 30, 50, or 90 minutes
* Indoor and outdoor coils constructed of aluminum fins mechanically bonded to seamless copper tubes
* 24 Volt control circuit with circuit breaker
* Thru the bottom power entry capability
* 25% manual outside air damper on sizes 156 180 models
5 Year compressor limited warranty
* 1 Year parts limited warranty
http://icpindexing.mqgroup.com/documents/086477/52314110103.pdf
