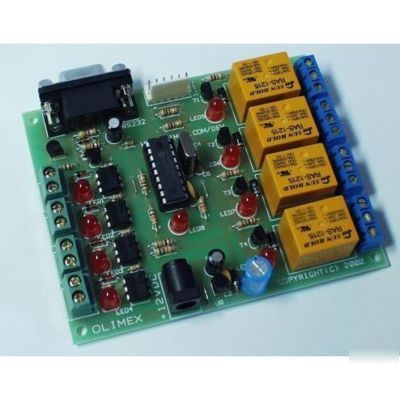

Sparkfun-olimex 18 pin pic development board inc relays
Development board for 18 pin PIC microcontrollers with power supply circuit, crystal oscillator circuit, RS232 port, ICSP/ICD port, 4 relay output, 4 optocoupler isolated inputs.
* Power plug-in jack for +12VDC power supply
* Status LED connected to RB5
* RS232 interface circuit with Tx, Rx signals
* 4 relay outputs with 10A/250VAC contacts with screw terminals
