New brand dental 4 holes air polisher unit device

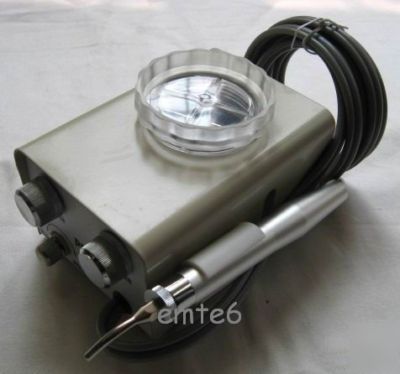

Brand New Dental 4 Holes Air Polisher Unit Device
With projecting of tiny solid power, the polisher can softly remove the tartar, bacterial specks and other spots on the teeth instantly. And it can also polish teeth without injuring the glaze. Therefore, it is essential in the prevention and cure of toothache.
Polisher is a well-designed product of our corporation. It adopts the newest technique. For example, the spout is smaller than the entrance, and it will greatly enhances the cured efficiency and makes the patients feel much more comfortable at the same time. What s more, there is a unilateral valve settled in the inner can prevent the converse absorption of the powder and protect the air compress system.
Overall dimensions: Length Width Height = 135 100 90mm
3. Powder adjust knob (revolve clockwise to reduce powder and counterclockwise to increase powder)
4. Current adjust knob (revolve clockwise to reduce current and counterclockwise to increase current)
6. Air Knob (revolve clockwise to close the air before using otherwise it will whiff without powder. Turn counterclockwise to whiff the powder that remaining in the pipe after the operation, for preventing the clog in the pipe.)
3 Open the case cover, pour powder in it (about 1/3 of the total volume), then close the cover tightly.
Attention: it will be clogged when the powder is up to 1/2 volume
Adjust the air pressure switch on the machinery to set the air pressure at 0.2-0.5MPa
Adjust the water pressure switch on the machinery to set water pressure at 0.2-0.5MPa
Start the operation. During the process, press the foot switch and the polisher works. Otherwise it stops.
During the treatment you can adjust the current and powder .The more powder it jets, the stronger effect. (Be sure to
After the treatment, turn the powder adjust knob to close the powder-accordance valve, turn the air knob to open the air-accordance valve. Then press on the foot switch for a moment to clean the surplus powder (when sweeping the pipeline, swing it, and you will achieves the best effect.), for preventing clog.
The hand piece sanitization method
Pour out all the powder in the case and use a thin tinsel to dredge the powder-in-out hole until the spout unhindered.
Screw the nozzle from whorl, blow the two tips of the nozzle with high-pressure alternately. Clean the remaining powder until the spout unhindered.
Press on the foot switch to clean the remaining powder in the pipe until the pipeline unhindered.
If the powder curdle, can t be blew or stabbed, you can marinate it in water to dissolve the solid.
