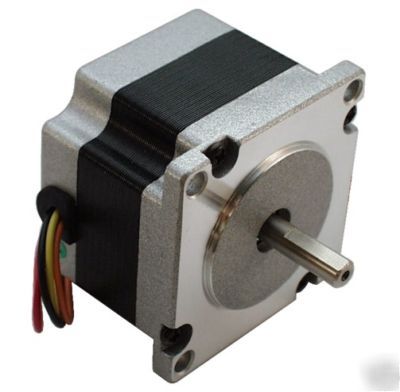

Nema 23 step, stepping, stepper motor 23Y002S-LW4-02
Cases are sealed so no scratches or any defects to the motors. Stored in A/C facility,no humidity and no rust on motors.
The manufacturers Retail Price is $37.
We sell it for half (50%) of that.
23Y002S-LW4-02 is a 1.8deg (200 steps/revolution) NEMA 23 step motor with 76 oz-in holding torque ( 54 N-cm ). Four wires 6" long allow connection to any bipolar driver. The wires are terminated with 4-pole receptacle with standard 0.100" pitch. Receptacle can be easily cut off if not needed. Motor is NOT suitable for unipolar drivers. Has 4 wires and will work with Bipolar drivers only. This is High-Torque motor and it will perform excellently in any application. The shaft is standard 0.25" diameter ( 6.35mm).
Motor is rated 0.7A per phase.
To fully utilize this motor we recommend power supply with 24Vdc.
Data sheet and connection diagram:
http:// /public_docs/23Y002S-LW4-02.pdf
Manufactured by Anaheim Automation.
This motor will not last long at this price so please hurry up and don't wait with purchasing.
