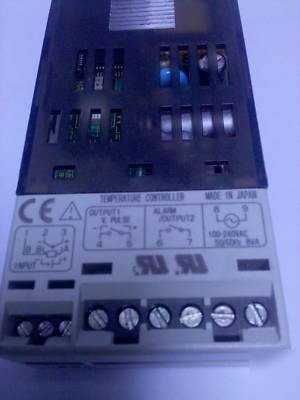

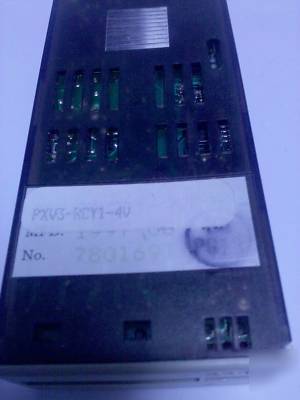

Fuji PXV3 1/32 din temperature setpoint controller
Full specifications and manuals are available: http:// /temp/pxv3.htm
Part of Fuji Electric s new PX Series, the PXV3 1/32 DIN controller with fuzzy logic control and PID Autotune utilizes Fuji s patented fuzzy logic algorithm to ensure that your process remains at setpoint, virtually eliminating overshoot on start-up and during in-process disturbances. Fuzzy logic technology enables a process to reach its pre-determined setpoint in the shortest time possible with an absolute minimum of overshoot. The fuzzy logic works in conjunction with the Autotune function so that the value of the PID parameters chosen by the controller is used as a starting point for all decisions made by the fuzzy logic intelligence. The end result is that your process will reliably achieve setpoint and maintain it.
Not only is this controller a sophisticated, precise device for controlling temperature and process, it s tough too. With a NEMA 4X rated faceplate, this controller will withstand harsh environments and applications where it might come in contact with water or corrosive chemicals. And, this 1/32 DIN controller is a space-saver as well, with a front panel as small as 1 by 2 and a depth of 4 behind the panel.
The PXV3 offers many standard features: PID Autotune and fuzzy logic control, NEMA 4X faceplate, 85 to 264V AC supply voltage or optional 24V AC/DC supply, multiple-input capability, relay and SSR drive outputs, eight-segment ramp/soak programming, and many levels of security to prevent unauthorized use.
