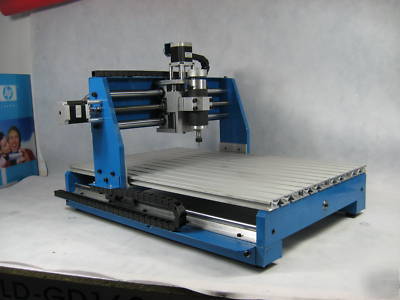

Cnc router engraver drilling and milling machine 60400
CNC router engraver drilling and milling machine 60400
* Working area 580mmX400mmX60mm
* Max thickness of the materials 90mm(the distance between Z axis and the bottom of the working station)
* 6061 aluminum alloy + 6063 Industrial aluminum
* Slide glide unit X axis 20mm Chrome circular orbit Y axis 16mm supporting rail Z axis 13mm Chrome circular orbit
* Stepper motor New 2.8A two-phase 57 stepper motor
* Drive unit 1605 ball bearing linear + cased muff coupling
* Spindle motor C57 300W DC motor used, from USA super-low noise speed 3000-9000 ER11 3.175 collet)
* Spidle accuracy: radial runout 0.03mm
* Engraving accuracy better than 0.04mm has been tested)
* Resetting accuracy better than 0.03mm
* Idle load speed 0-5000mm/min
* Engraving speed 0 2500mm/min
* Control box( electrics): 3977 3-axis control box with the power supply + spindle speed regulator
