Bird tenuline 20DB 40WATT 50OHM attenuator 8341-200

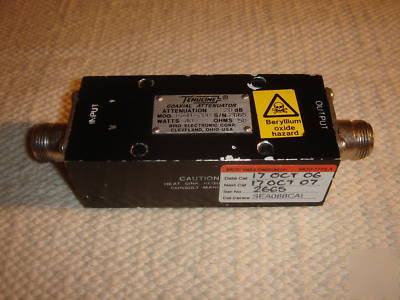

Bird Tenuline coaxial attenuator 8341-200, 20dB, 40 Watt, 50Ohm, female N connectors.
The following is taken from the Bird catalogue
Power Rating: 40 W continuous when bolted to a heat sink
Connectors: QC type (Female N normally supplied)
Frequency Range and Output VSWR: DC to 1 GHz @ 1.25:1 max.
Ambient Temperature Range: 40 C to +45 C
Heat Sink Required: Aluminum panel 1 / 8" 400 sq. in. (3 mm 1 /4 sq. m), or equivalent
Coolant: Dry (conduction cooled)
Nominal Size: (includes connectors)
3, 6, 20 dB 5 3 / 16" L (132 mm),
10 dB 4 11 / 16" L 1 5 /8" H 1 1 /4" D (119 mm 41 mm 32 mm)
Weight: 12 1 / 2 to 15 oz. (350 to 420 g)
Model Atten DC-0.5 GHz 0.5 1 GHz
8341-030 3 0.5 dB, 1.20 0.75 dB, 1.25
8341-060 6 0.5 dB, 1.20 0.75 dB, 1.25
8341-100 10 0.5 dB, 1.20 0.75 dB, 1.25
8341-200 20 0.5 dB, 1.20 0.75 dB, 1.25
