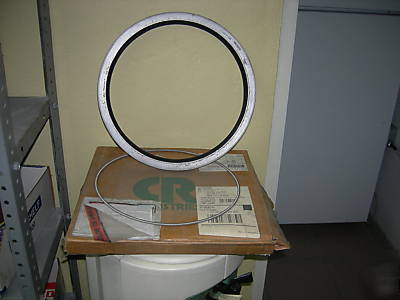

103380 cr oil seal 10.625 x 12.375 x .750
Enlarge Image item number01308627 description1063380 LDS Oil Seal - Inches mfg. part number1063380 manufacturer CHICAGO RAWHIDE MFG CO Available InventoryAvailable Price$338.00 Input QTY PRIMARY PARAMETERS:TYPE OF PRODUCT: Oil Seal - Inches SHAFT OR INSIDE DIAMETER RANGE: 10.625 IN. BORE OR OUTSIDE DIAMETER: 12.375 IN. WIDTH: 0.750 IN. LIP MATERIAL: Nitrile Rubber (NBR) CONSTRUCTION DESCRIPTION: METAL CLAD, SINGLE SEALED SPRING LOADED SEAL SECONDARY PARAMETERStypical application: For general applications. continuous temperature range: -40 to +250 deg. F maximum shaft surface speed (fpm): 5000+FPM (25.4 m/s) misalignment tolerance: Size dependent "Refer to the 457010 Catalog" additional detail: Metal-cased, spring-loaded with Spring-Lock, preformed single-lip rubber packing encased in a heavy duty steel stamping, assembled. synonym: Radial Lip Shaft Seal for Oil or Grease; Barrier; package quantity: Single Unitized Parts type / style construction: HDS1 trade / brand name: SKF weight ea. (lbs): 4.090 standard mfg delivery: 25 pressure tolerance (psi at fpm): 10-15 PSI (.07-.103MPa)
1063380 CR OIL SEAL 10.625 ID X 12.375 OD X .750
