Ue nema 4X temperature switch 0-225F B100-120/1530

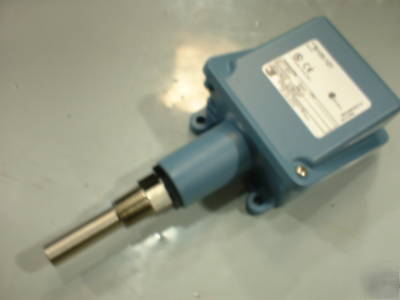

UE 100 Series NEMA 4X Temperature Switch
Adjustable Setpoint Range: 0 to 225 F,
One SPDT Switch Output, Bulb and Capillary,
Bulb (OD x Length): 9/16" x 1-7/8" Below Threads
External manual reset, 15 amp 480 VAC resistive
Latches on rising pressure or temperature only.
Temperature variations are sensed by a liquid filled sensor which expands
or contracts against a bellows which actuates a snap-action switch at a
Controls are factory calibrated for maximum accuracy at the midpoint of
the scale. To re-calibrate, turn dial to desired set point(See Figure 2). If the actual temperature and set point temperature do not agree, turn hex adjustment screw towards the left (clockwise) to raise and towards the right (counterclockwise) to lower temperature setting.
