SFH6345 high speed optocoupler gaalas HCPL4503 6N135

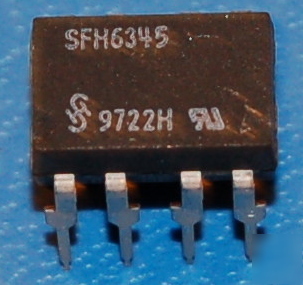

SFH6345 high-speed optocoupler IC. Direct replacement for HCPL4503, similar to 6N135. This optocoupler uses a GaAlAs IR emitting diode, coupled to a photo detector consisting of a photodiode and a high-speed transistor.
* Isolation voltage: 5.3kV RMS
* Transmission rate: 1MBit/s
* TTL-compatible, open-collector output
Download the datasheet here (PDF format).
