Mahr 1086 marcator 0.001 mm res. digital indicator

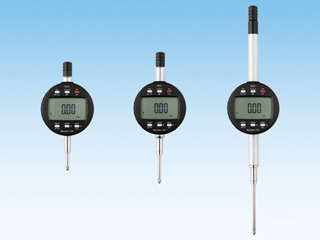

MAHR 1086 MARCATOR DIGITAL INDICATOR,
This is a digital indicator similiar to a dial gage indicator with a 12.5 mm long stem. The unit is equipped with a Universal Data Interface Port that allows for the connection of a USB cable for data output only. The data cable is not included but is available through Mahr or an authorized re-seller. Features Include:
Reversal of the counting direction
PRESET (Allows the entry of any value using set buttons)
TOL (Enter tolerance limit values)
ABS (Display can be set to zero, without losing the reference to the Preset value)
<0> (Tolerance GO / NO GO display mode)
DATA (when connected with a data connection cable)
Indvidual buttons can be locked
Operating and diplay unit (bezel) can be rotated through 280
High contrast LCD with 11 mm high digits
Inductive measuring system, battery life approx. 2000 hrs.
Maximum measuring speed 1.5 m/s (60 /s)
Lifter protection cap on the measuring spindle
MarConnect data output:choose either USB, OPTO, RS232C, Digimatic
Operating temperature 10 - 40 C
Class of protection IP42 in accordance to IEC 60529
For more information, please follow this link:
http:// /scripts/relocateFile.php?ContentID=5609&NodeID=6041&FileID=6984&ContentDataID=26593&save=0
Instruction sheet is included as a hard copy and is also available as a PDF file and can be e-mailed if needed - file size 1 MB+.
