Hp 6209B dc power supply 0-320V 0-.1A, used, good cond.


This Listing is for an HP 6209B DC Power Supply 0-320V, 0-0.1A, Used, Good Condition (Last one of these that I have)
* HP 6209B DC Power Supply 0-320V, 0- 0.1A, Used, Good Condition

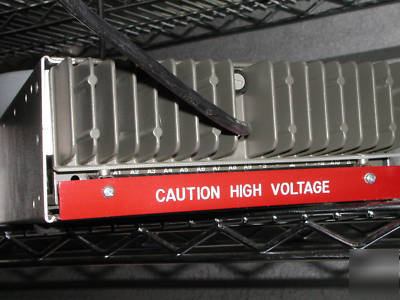

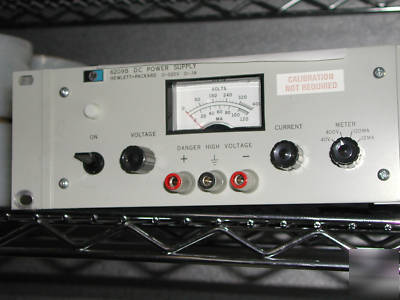

This CV/CC Power Supply covers a range up to 320V. It is equipped with 10 turn voltage and current controls on the front. The unit has rear panel terminals Units can be bench operated or rack mounted with optional hardware.
* Number of output ranges: 1
* Output 1: 0-320VDC, 0-0.1A
* Load Regulation: 0.01% + 2mV
* Ripple and Noise: 1 mV RMS
* Ripple and Noise Peak to Peak: 40 mV
* Resolution (Minimum change using front panel controls) Voltage: 40 mV
* Resolution (Minimum change using front panel controls) Current: 200 A
* Input Voltage: 115VAC 10%, 48-63 HZ
* Specifications are available here
* Operating and Service Manual is available here on the Agilent site
