Exfo fiber optic power meter tester fot-93A 840/1650NM
EXFO Fiber Optic Power Meter Tester FOT-93A 840/1650nm Used
Model/Part No:FOT-93A Our Item ID: 5902

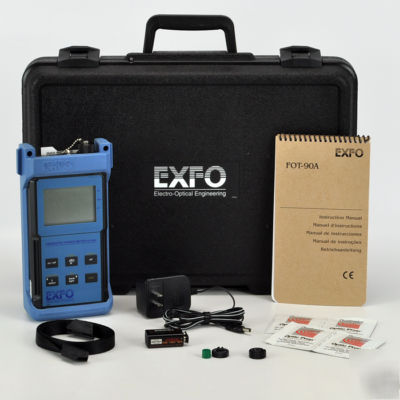

Includes: FOT-93A, Hard Case, Power Supply, Instruction Manual, FC adapter, Universal adapter, Optic prep pads Carrying strap. Sold As Pictured.
This Power Meter is the 93A model from the EXFO FOT-90A series. The 90A series requires no warmup time so testing can be started immediately. This version boast 20 seperate wavelenghts making it a valuable addition to your test equipment and insuring all of your measurement needs are met. Wavelength Specifications (nm): 840,850,860 910,980 1060,1250,1280,1290 1300,1310,1320 1500,1520,1530,1540,1550,1560 1600,1650 Unit Tag Information: FOT-93A 60152-2H U-2.4 March 1999
The FOT-90A Power Meter, one of the most complete fiber-optic power meters
available, just got better. EXFO is leading the industry again by being the first to
offer +35 dBm capability in a handheld instrument. This sturdy unit has received
worldwide acceptance in the fiber-optic industry. In a world where technology
seems to change every second, the FOT-90A continues to demonstrate its superiority
by providing reliable performance and accurate measurements.
The FOT-90A is a high-performance unit for power/loss testing of fiber-optic links
and components. It features an automated wavelength-recognition system with
intelligent testing options. Paired with a compatible light source (FLS-210A or
FLS-210B), the FOT-90A automatically recognizes operating calibration wavelength
parameters, then averages, validates and stores loss data with easy onebutton
Manufacturers description and specifications may not fully describe actual unit. Please see our description for actual unit details.
Model FOT-90A FOT-92AX FOT-93A FOT-93AX
Detector type Ge (2 mm) Ge (2 mm) InGaAs (2 mm) InGaAs Ultra-High Power
Power level option - - - P1 P2
Measurement range2,3 (dBm) 10 to 70 18 to 60 3 to 73 28 to 43 35 to 43
Uncertainty4 (%) 5 5 5 6 6 6.5 6,8
Resolution4 (dB) 0.01 0.01 0.01 0.01 0.01
Linearity (dB) 0.025 0.025 0.025 0.17 0.17
Wavelength range (nm) 780 to 1600 780 to 1600 840 to 1650 980 to 1625 980 to 1625
2. At 1310 nm for FOT-92A, FOT-92AX, FOT-93A; at 1550 nm for FOT-93AX models.
3. In auto mode, signal capturing is 12 dB above the minimum sensitivity.
4. Resolution and uncertainty are functions of input power; uncertainty is valid at calibration conditions.
6. At all calibrated wavelengths except 1625 nm.
7. At 1550 nm; from 30 dBm to 20 dBm; 0.12 dB from 20 dBm to 28 dBm; 0.3 dB from 28 dBm to 35 dBm (for FOT-93AX-P2 only); always referenced at 0 dBm.
8. When exposed to an input power higher than 28 dBm, uncertainty is valid for a maximum period of 15 minutes.
Item Tested?: Physical Condition: Good; Working Condition: Fully Functional8 | 24x 18x10 | 1
