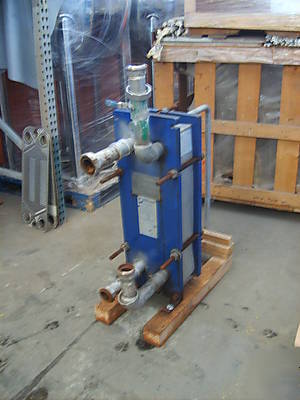

Alfa laval plate heat exchanger M6-mfg
DESCRIPTION: PLATE HEAT EXCHANGER M6-MFG.

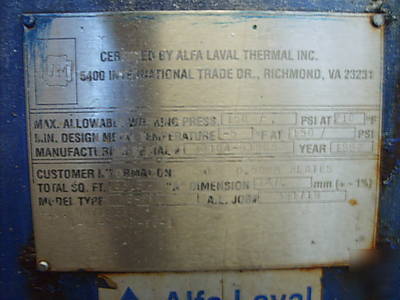

Max Allowable Working Pressure: 150 psi at 210 F
Min Design Metal Temperature: -5 F at 150 psi
Height: 920mm (36.22") (see pdf)
Width: 320mm (12.60") (see pdf)
Vertical connection dist., VC,: 640mm (25.20")
Horizontal connection dist., HC,: 140mm (5.51")
Connection size, flange: 2.36" (60mm)
Max flow rate: 15 kg/s (33.07 lbs/s)
