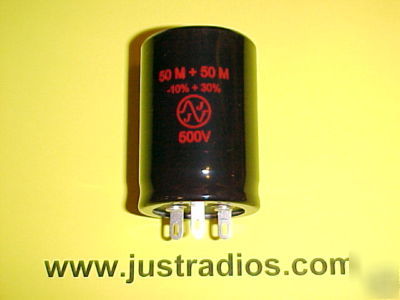

50UF+50UF at 500V jj can electrolytic capacitors: qty=3
On sale are package of three (3) brand new dual-section 50uF + 50uF at 500 Volt electrolytic capacitors made by JJ Electric. These 500 volt multi-section E-caps are clamp mount type with solder lug terminals (2 positive and 1 common negative). There are brand new factory fresh capacitors (we do not sell NOS new old stock). These high quality E-caps excel is music industry applications such as guitar & bass amplifiers, audio amps, radio-phono combinations, juke boxes, televisions, HAM radios, etc. Applications include: Tube Based Electronics; Hi-End Audio Electronics; Power Supplies (filter capacitors) and Industrial Electronics.
* All Electrolytics are new "factory fresh" stock. We do not sell NOS (new old stock).
* Capacitance: 50 uF + 50 uF. This is a "dual" section multi-section electrolytic capacitor.
* Working Voltage (WVDC) is 500Volts.
* Low impedance / Low ESR / Wide Frequency Range.
* Ideal for: Music Industry Applications; Hi-End Electronics; Power Supplies (filter capacitors); Industrial Electronics.
* Solder Lug Connections (ideal for hand wired circuits). These are not snap-in capacitors.
* Clamp Mounted. Clamps are sold separately.....use 1 3/8" dia. (35mm). Yes, we also sell JJ clamps if you need them.
* Construction: Aluminum Case and Solder Lugs.
* Safety Vent located at End-Deck.
* Black PVC Sleeve Insulation (with red lettering).
* Operating temperature: -25C to +65C.
* Dissipation Factor: ,20 (pri 100Hz, 20C)
* Leakage Current: I=0,005.C.U. (after 5 minutes of rated voltage)
* Size: 1 3/8" diameter and 2" high (35mm by 50mm))
* Make/Series: JJ Electric / TC
* Capacitance tolerance: -10% / +30% (100Hz, 20C).
