Tektronix TDS3SDI 601 video module - refurbished
Tektronix TDS3SDI 601 Video Module - Refurbished
Tektronix TDS3SDI 601 Video Module - Refurbished
Tektronix 601 Video Module - Refurbished
This unit is a Re-freshed Test Demo
This unit was used for demonstration purposes only
and has since been refreshed and recalibrated by
It is offered at a discounted price compared to new units
It is covered with a 90-day warranty
It has all original factory accessories
It has been re-calibrated to insure the unit is in proper working order
A calibration certificate is included

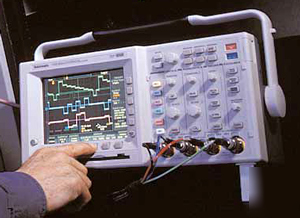

The TDS3SDI module plugs into a four-channel TDS3000 Series Digital Processing Oscilloscope (DPO). Together they create a compact, battery-capable, 3.2 kg unit that allows you to carry the capabilities of an SDI-to- analog video converter, vectorscope, picture monitor, and a powerful DPO wherever you go.
This combination of the video module and the TDS3000 Series DPO allows you to trace and identify ITU-R BT.601 video signals, examine their representative analog component and composite waveforms, and analyze the bitstream. The module even auto-equalizes for long cable lengths.
Features: * Converts ITU-R BT.601 format digital video to
* Compact in size; portable and battery-capable
* Provides video picture with on-screen line select
* Incorporates vectorscope with 100% and 75%
Benefits: * Converts the otherwise indecipherable digital analog video stream of bits into familiar analog signals for quick problem diagnosis
* Ideal for field work or behind-the-rack troubleshooting
* See what the originating camera or source sees and quickly navigate between lines
* With built-in graticules, it is easy to measure color bars chroma levels and check white balance
For more detailed information, please click here to view the Application Notes in .pdf format.
List price for new units: $2500.00
