New keyence cz-K1P rgb digital fiberoptic color sensor

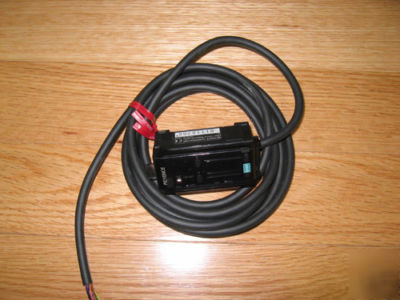

For sale are new Keyence PNP CZ-K1P RGB Digital Fiber Optic Amplifiers.
* Industry s highest color resolution. RGB digital amplifier has 12-bit resolution for all 3 colors. Built in self-stabilizer monitors each LED
Units have 3 methods of detection
http://www.keyence.ca/products/sensors/fiberoptic/cz/cz.php
300 ?s/1 ms (switch selectable)
Output: Red LED, Calibration: Orange LED,
External synchronization input: Green LED,
Matching rate/received light intensity: LCD (Red/Green)
Excess light intensity, insufficient light intensity,
Calibration method 1-point/2-point calibration (switch selectable)
Tolerance value adjustment Numerical value setting on digital display
C mode/C + I mode/I mode (switch selectable)
Timer OFF/OFF-delay timer (40 ms) (switch selectable)
Match output: Turns on when target color matches registered color.
Mismatch output: Turns on when target color is different from registered color. (switch selectable)
External synchronization input
Non-voltage input, Response speed: 500 ?s max.
Non-voltage input, Input response time: 20 ms min.
8-bank selection (By external input), Non-voltage input,
Input response time: 20 ms min.
NPN or PNP open-collector: 40 VDC max. (100 mA max.), Residual voltage: 1.0 V max.
Reverse-polarity protection (power supply), overcurrent protection (output), surge absorber (output)
12 to 24 VDC 10%, Ripple (P-P): 10% max.
Incandescent lamp: 5,000 lux max.,
10 to 55 Hz, 1.5 mm double amplitude in X, Y, and Z directions, 2 hours respectively
500 m/s2 in X, Y, and Z directions, 3 times respectively
