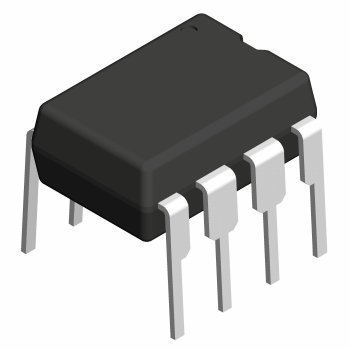

Ics chips: TC429CPA 6A single cmos power mosfet drivers
High Peak Output Current: 6A
Wide Operating Range: 7V to 18V
High Impedance CMOS Logic Input
Logic Input Threshold Independent of Supply Voltage
- With Logic 1 Input 5mA Max
- With Logic 0 Input 0.5mA Max
Output Voltage Swing Within 25mV of Ground or VDD
Short Delay Time: 75nsec Max
High Capacitive Load Drive Capability
- tRISE, tFALL = 35nsec Max With
Class D Switching Amplifiers
