Down draft paint spray booth + chain on edge conveyor

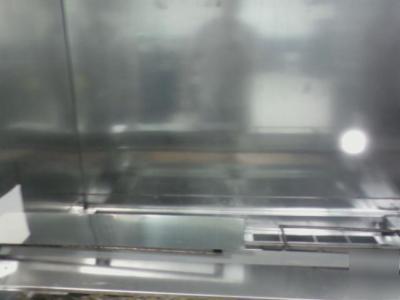

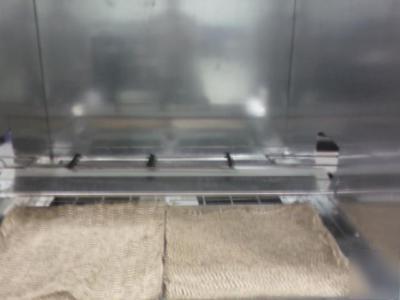

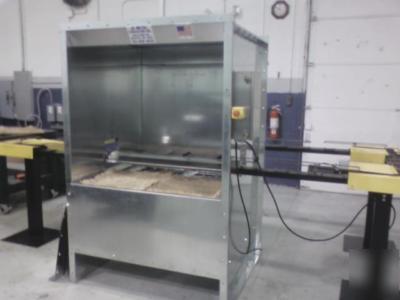

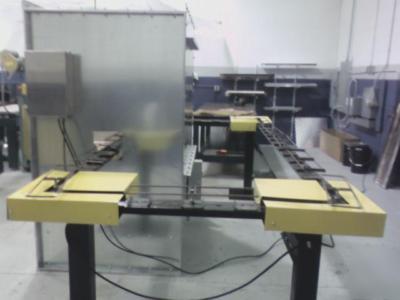

4ft Down Draft Paint Booth with Chain on edge conveyor system
working area =44"w X48"t X 30"d
overall size =12'6"w X 7'2"t X 8'd
max part size = 20"L x 12"d x 20" tall
All JC METAL FAB booth's are constructed from 18ga g90 galvanised steel. Panels are pre-punched on 6" centers and flanged. Interior is smooth for cleaning.
(1) 12" tube axial fan .75hp tefc 1 phase motor
(1) extra, punched angle ring to mount stack to fan
(15) part holders designed to fit your product
(1) control panel with nema 1 enclosure disconnet and conveyor e-stopn
