Digital thermoelectric temperature controller heat cool

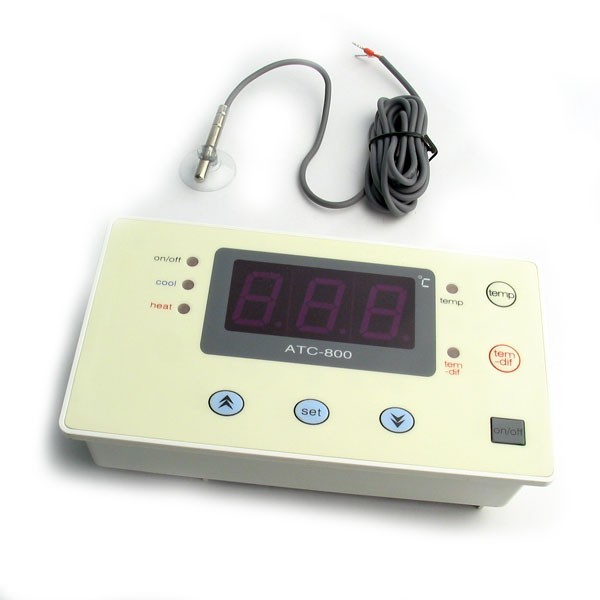

Digital Thermoelectric Temperature Controller Heat Cool
The large, easy-to-read 3 digit LCD screen displays a constant reading, so you can be sure that the controller is working to your requirements.
* Wire the controller to the heating or cooling system that requires regulating
* Set your required temperature
* Set the temperature difference (between 1-5 )
* Switch the controller and system on
* Sit back, safe in the knowledge that the micro computer controller will do all the hard work for you!
* Works with both heating and cooling systems
* Built-in short circuit sensor
* ATC-800 mainframe control unit
* Temperature measuring probes and cable
* Suction cup for attaching cable
* Operating temperature: -5 ~ +70 C
* Relative humidity: 20% ~ 85%
* Control temperature range: 5 - 40 C (adjustable)
* Control temperature difference: 1 - 5 C (adjustable)
* Heating relay contact capacity point volume: 10A (max) 240VAC
* Refrigeration relay contact capacity point volume: 25A (max) 240VAC
* Power supply: 220V AC 10% 50Hz
* Compressor delay protection time: 3 minutes
* Unit dimensions: 18 x 10 x 6cm / 7.1 x 4 x 1.7 (W x H x D)
