DSP2812 development board TMS320F2812 evaluation board
This DSP USB network expansion board will cost $45

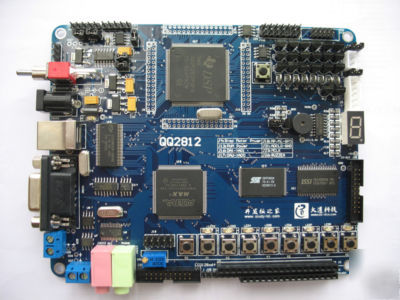

The QQ2812 DSP Evaluation Board , TMS320F2812 DSP development study board is a tool for start aplication with TI TMS320f2812 DSP.
Rich in resources and the application of the board, to help you express learning development, to provide a complete program, and application of material.
The F2812 eZdsp is a stand alone module that lets evaluators examine certain characteristics of the F2812 digital signal processor (DSP) to determine if this DSP meets their application requirements.
This module has a single chip parallel port to JTAG scan controller. Therefore the module can be operated without additional development tools such as an emulator. Furthermore, the module is an excellent platform to develop, demonstrate, and run software for the F2812 processor
On-board TMS320F2812 DSP, 32-bit fix-point Flash DSP, operating at 150MHz
128K*16 bits on-chip Flash program memory, Flash encryptable
expand 256K * 16 bits SRAM,IS61LV25616
expand 512K * 16 bits FLASH,SST39VF800
dc motor control and step motor interface
all pins out for secondary development
+5V 3.3V 3.3VA 1.8V GND GNDF test point
Physical Dimensions:13.5 * 11 cm
With 4 layer board design, welding machine, ensure the bonding process stable, reliable performance, high speed
USB HOST interface need expand USB-NET board
internet interface need expand USB-NET board
* All testing source code for CCS test, PWM test, ADC test, SPI test, SCI test, CAN communication test, FFT test, DC brush/brushless motor test, AC motor SPWM and SVPWM test
internal timer 0 scrolling experiment,
internal timer2 LED experiment,
digital tube display experiment,
external FLASH read and write,
external interruption control experiment,
DA conversion laboratory experiments,
he RS - 232 interface communication experiment,
485 interface communication experiment,
PC to USB communication experiment (provide firmware code and PC produce professional DEMO code),
stepping motor control experiment,
12864 graphical LCD experiment,
1602 character liquid crystal display (LCD) experiments,
Recording and playback experiment,
Keyboard scanning experiments,
the can bus equipment receive and send experiment,
2) produce professional demo client PC code
The PC code-behind for Borland c++ builder programming language, provide graphic interface, through DLL library functions, give users demonstrates how to complete a USB data transceiver, DSP code also demonstrates how to read data, users can refer to the call of the sample, quickly finish their program development, and not to care for USB protocol details.
Complete and logical agglutinate address assignment.
Frequency conversion control, automobile, machinery, disk drives, digital filter,
Vibration analysis, ac servo system, dc motor control, etc.
a QQ2812 TMS320F2812 DSP board
a DVD rom for learning materials
Not included DSP USB network expansion board
