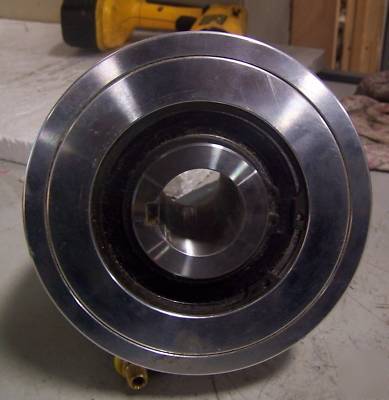

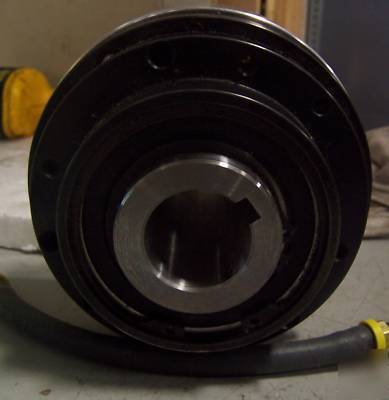

New nexen 912400 tooth clutch 1.5" bore 80 max psi
NEW NEXEN 912400 TOOTH CLUTCH 1.5" BORE 80 MAX PSI
Comments: Positional Reengagement Torque Is Approximately 10% Of Clutch Torque Being Generated Based On Applied Air Pressure
Pilot Or Drive Flange Bolt Circle Data: 4, 0.250-20 Holes @ 90 On A 4.750 in. B.C.
Maximum Static Clutch Torque: 4,900 inlbs
Minimum Static Clutch Torque: 1,230 inlbs
Backlash: Less Than 17 Arc Minutes
Number Of Engagement Positions: 1 @ 360
Minimum Sprocket Size: 40/36T, 50/30T, 60/26T, 80/20T
Minimum Engagement Pressure: 20 psi
Air Chamber Volume: 0.763 in .
Finish: Machined Aluminum Air Chamber, Black Oxide Pilot
