Inspection camera see in hard to reach places borescope

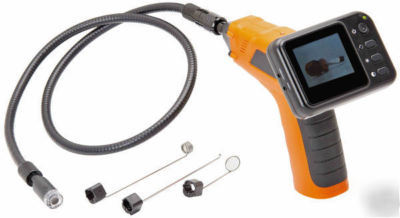

Wireless Inspection Camera - The Perfect Inspection Tool for Busy Professionals
Wireless Inspection Camera includes a 3 ft cable which also has the flexibility to add in 2 more - 3 ft sections. ( We sell the additional 3 ft cables in our store )
The camera/cable diameter is 3/4 inch, so it will fit into tight spaces. The cable is semi-rigid, but flexible, and can be bent to fit or follow the shape of the vehicle or component being viewed. The manufacturer recommends that you limit the bend radius to three inches, however, to prevent cable damage.
Using the Wireless Inspection Camera
Our Wireless Inspection Camera allows for remote inspection of areas generally inaccessible to the naked eye. The Wireless Camera comes with a distal video camera at the end of a 3 ft shaft for internal inspection of engines, A/C systems, interior structures of walls, and other industrial and similar applications.
Its very easy to use and here is even a few tricks:
* Recording what the camera is seeing is easy. Just plug in any Video MINI Jack (3.5mm not included but found at CE super stores ) into the video input on the side and then plug the video input into either a VCR or TV input. It is that simple.
* If you see a bright white screen, you probably have the camera lens right up against a reflective surface that is bouncing the LED light back into the camera, creating glare. Just pull the probe back a bit.
* If you are working inside a contained area with little or no ambient light, remember that the Led's are providing the illumination. Moving the camera tip in and out a bit can improve lighting on the object for the best screen display.
* When using the mirror for right angle views, clean the mirror glass carefully with a lint-free cloth. Small specks of dirt and dust and fingerprints degrade the screen image.
* High resolution remote color camera
* Autofocus (Viewing distance: 2" and up)
* Resolution 712 x 486 pixels
* 2.4" full color viewing monitor
* 3/4 inch shaft diameter at tip
* Shaft material: High-density polyethylene (HDPE)
* 3 ft standard shaft length ( Additional available in our store )
* High output LED illumination
* 4 hrs operation on 4 AA batteries
* Mirror, hook and magnet accessories included
* Video out for optional recording
* Video out port: Mini jack - NTSC signal
* Light source: (2) white LED's in tip
* Viewing angle: 50 (without clip-on mirror)
* Minimum bending radius: 3"
* Power: (4) AA batteries for hand held and rechargeable (Included) for Monitor
* Battery life: approximately 4 hours
* Display Monitor with built in rechargable battery
Q. Can the monitor be used on and off of the hand held?
A. Yes you can either keep the monitor mounted on the hand held or use it remotely.
Q. How far away can the monitor be used away from the hand held?
A. It really depends on the environment you are trying to use it in. 10ft should be expected however you may realize much greater depending on the strength of the batteries at the time and the RF interference at the location you are using the Wireless Inspection Camera.
Q. Is the unit water proof or can it be used in liquid?
A. The image head and cable are water resistant but should not be used in any liquid of any kind. Any liquid can damage the unit.
