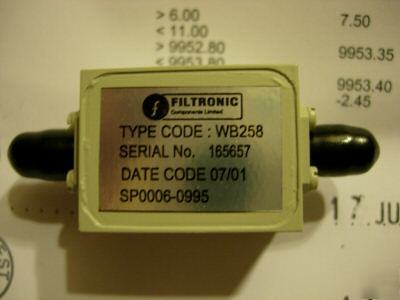

Filtronic WB258 / WB259 microwave rf band pass filter
Filtronic WB258 / WB259 Band Pass Filter. with SMA connector.
Available: 1). WB258 (9952.30-9954.30 MHz), 2). WB259 (10663.2-10665.4 MHz).
S11(MHz) Spec.(dB) Init. Amb.(dB)
WB258: 9952.3-9954.3 <-8.00 -19.98
WB259: 10663.20-10665.40 <-8.00 -14.61
S22(MHz) Spec.(dB) Init. Amb.(dB)
WB258: 9952.3-9954.3 <-8.00 -21.31
WB259: 10663.20-10665.40 <-8.00 -11.63
S21(MHz) Spec.(dB) Init. Amb.(dB)
WB258: 9952.3-9954.3 >-4.00 -2.5
WB259: 10663.20-10665.40 >-4.00 -3.40
S21 Rej(MHz) Spec.(dB) Init. Amb.(dB)
WB258: 5000.00-9930.00 <-20.00 -22.56
9976.5-12000.00 <-20.00 -22.14
12005.00-13000.00 <-10.00 -14.36
WB259: 5000.00-10641.00 <-20.00 -23.61
10687.00-13000.00 <-20.00 -22.82
Group Delay Variation(MHz) Spec.(ns) Init. Amb.(ns)
WEB258: 9949.3-9957.301 <6.0 2.1
WB259: 10661.80-10666.80 <6.0 1.6
1.0dB bandwidth search Spec.(dB) Init. Amb.(dB)
WB258: 1.0dB bandwidth (MHz) >6.0 <11.00 7.30
Center Frequency (MHz) >9952.80 <9953.8 9953.35
Max S21 Frequency (MHz) 9953.30
WB259: 1.0dB bandwidth (MHz) >5.0 <11.00 5.90
Center Frequency (MHz) >10663.80 <10664.8 10664.35
Max S21 Frequency (MHz) 10664.10
