Digital ultrasonic flaw detector-RFD2000
Calibration Certificate: All of our products coming with original calibration certificate. Also, every week there are hundreds of our products are getting third party calibration certificates (such as UKAS and NIST approved institutes and companies) in Europe and North America.
We are building our reputation with quality and service, toll free number: 1-(***)-370-0038.
Return: If you are not satisfied with our products, you can return it within 30 days (yes, 30 days, longer than the standard 14 days) and we 100% refund your money.
Please Contact Us for Detailed Product Instruction and Documents.

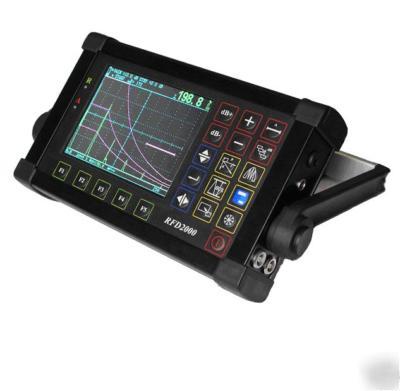

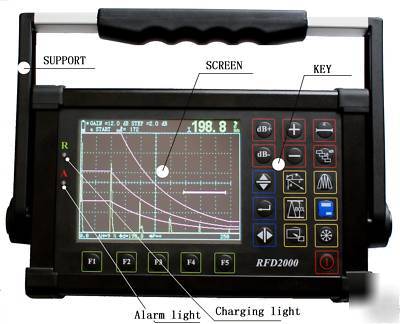

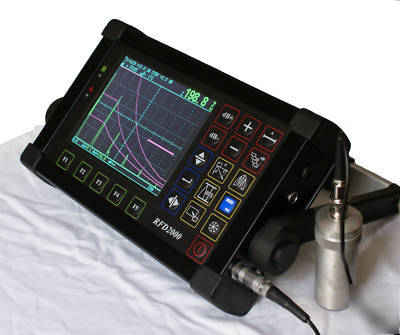

RFD2000 Digital Ultrasonic Flaw Detector
1. Automated display precise flaw location(Depth d level p distance s amplitude sz dB )
2. Automated switch three staff gauge ((Depth d level p distance s)
3. Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity
4. Convenient to make and use DAC and AVG to evaluate the echo,the curve can be modified and compensated
5. Ten independence setup, any criterion can be input freely, we can work in the scene without test block
6. Big memory of 300 A graph and 30000 thickness value.
7. Automated gain and gain scan;
8. Automated make video of test process and play;
9. Peak Hold and Peak Memory
11. Powerful pc software and reports can be export to excel;
12. The embeded software can be online updated
13. Li battery, continue working time up to 10 hours;
* Lock and unlock function of system parameters;
* Dormancy and screen savers;
* Electronic clock calendar ;
* Two gates setting and alarm indication;

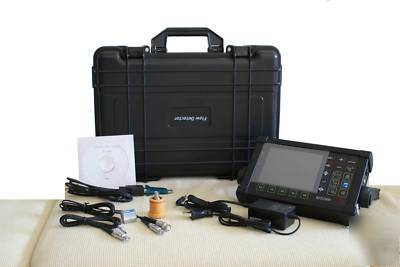

Table 1.1 List of standard configurations
1.5A/9V power adaptor (110v-240v)
Table 1.2 List of options (optional items will come free with standard configuration package)
