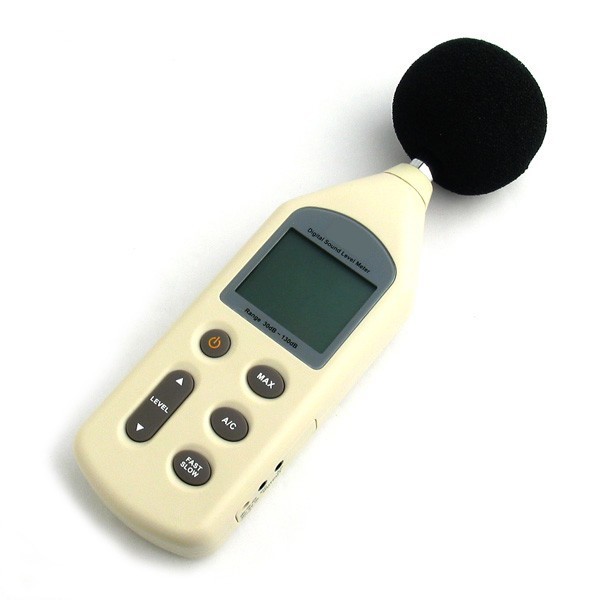

Digital noise sound meter decibel AR824 30-130 db fedex
Essential for measuring and maintaining noise levels in the work place to comply with regulations and for checking the acoustics of auditoriums, studios and home theatres, this 4 range hand-held sound level meter has an easy to read indicator and is battery operated for true portability.
The meter has been designed to IEC 651 TYPE2 and ANSI S1.4 TYPE2 for sound level meters and gives an instantaneous measurement reading between 30dB and 130dB.
Features include the ability to change between the fast and slow settings with the flick of a switch to monitor either an average or the peak sound levels present in the environment and A and C weighting for the measurement of different levels. A covers general sound level measurements whilst C is for checking the low frequency content of noise.
* Designed to IEC 651 TYPE2 and ANSI S1.4 TYPE2 for sound level meters
* Reads instantaneously and accurately
* Measures from 30 dB to 130 dB
* 2 equivalently weighted sound pressure levels - A and C
* AC and DC signed output for frequency analyzer level recorders, FFT analyzers, graphic recorders etc
* Supplied with sturdy, padded storage case for safe transportation whilst inbetween jobs
* Accuracy: +/-1.5 dB (under reference conditions)
* Frequency range: 31.5 Hz to 8.5K Hz
* Measurement level: 30 130 dBA, 35-130 dBC
* Frequency weighting: A and C
* Digital display: 5 digits, 0.1 dB resolution, 0.5 secretary display
* Bar graph: 50 dB scale at 1 dB step for monitoring current sound level pressure, display period: 50 mS
* AC output: 0.707 Vrms at FS output impedance approx. 600
* DC output: 10 mV / dB output impedance approx. 100
* Microphone type: 1/2 inch Electret Condenser
* Power life: approx. 30 hours continuous use
* Self calibration time: 10 seconds (every time unit is turned on)
* Operating humidity: 10% to 80% RH
* Storage temperature: -10 C to 60 C
* Storage humidity: 10% to 70% RH
* Unit dimensions: 7 x 25 x 3.5cm (w x l x d)
* Screen dimensions: 4.5 x 4.7cm
* Weight (excluding batteries):238g
The digital sound level meter is brand new, boxed and unused. It is supplied with a heavy duty, padded carry case, microphone wind screen, instructions and battery.
