Danfoss VLT6002 inverter drive bnip

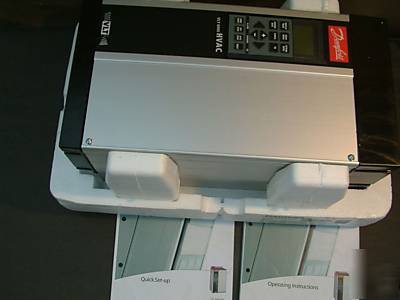

Danfoss VLT6002 Inverter Drive, Compact, IP54, model 175Z7047. 380/460V 3-ph 50/60Hz. New & Sealed in packaging with Manuals.
Provides improved control and energy saving for HVAC applications, including interface with building management systems. Gives precise control of temperature, pressure, and flow resulting in better environmental performance for building owners and operators.
Cont Output Current - 3.0A @ 380/415V
T/C VLT6002HT4C54STR3DLF00A00C0
Provides full control of the motor directly from the user interface. HAND START enables start and control of motor speed, OFF turns off the motor and AUTO START shifts control to digital inputs and/or serial communication.
Quick Menu guide means limited programming required to make the drive perfect for any application.
Unique AEO (Automatic Energy Optimizer) function optimises the magnetising current to the motor according the specific load.
Sleep mode function automatically turns off pumps or fans running at low speed and not really contributing to controlled parameter. When the system calls for energy, the drive starts up the motor again.
Frequency bypass function can reduce resonance damage by bypassing up to 4 frequencies.
Sensorless Pump Control enables the drive to control pressure in a water system without using a pressure transmitter, saving commissioning and direct costs in transmitter, installation etc.
Built-in RFI-filters for entire product range comply with EN55011, class A and 1B. No need for costly and space consuming external filters.
Built-in DC link reactors reduce harmonic distortion to around 40%, allowing cable dimensions to be reduced substantially. Complies with IEC 61000-3-2 and 61000-3-4 as well as VDE 0160.
S&H quoted is for UK Mainland. If outside of the UK Mainland - please e-mail for S&H Quote before purchasing.
