1997 acer supra 618 hand surface grinder w/roller tbl

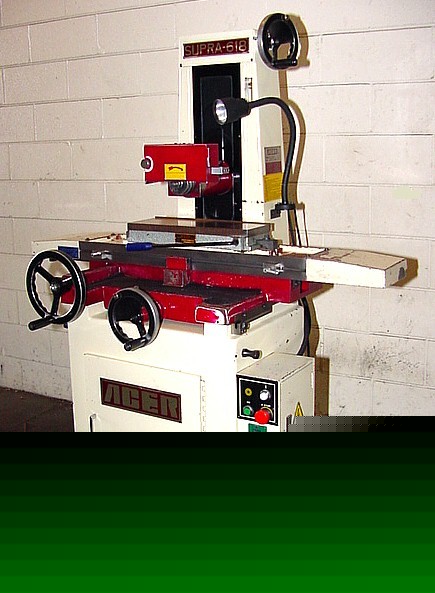

1997 ACER SUPRA 618 HAND SURFACE GRINDER w/ROLLER Tbl
1997 ACER SUPRA 618 HAND SURFACE GRINDER w/ROLLER TABLE
6" x 18" ACER "PRECISION" HAND FEED SURFACE GRINDER
MODEL: SUPRA-618 S/N: 97020170 NEW: 1997
WIDTH & LENGTH GROUND ........................... 6" X 18"
MAX. DISTANCE, TABLE TO SPINDLE CENTER ............... 18"
LONGITUDINAL TABLE TRAVEL .............................20"
CROSS TRAVEL ..................................... 7- 1/2"
GRINDING WHEEL CAPACITY ............ 8" X 1" X 1-1/4" BORE
CROSS FEED, HANDWHEEL PER GRAD. .................. 0.0005"
CROSS FEED, PER REV. ............................... 0.02"
VERTICAL FEED PER REV. OF HANDWHEEL ..... .......... 0.05"
VERTICAL FEED, HANDWHEEL PER GRAD. ............... 0.0001"
APPROX. WEIGHT ............................... 1,584 LBS.
APPROX. DIMENSIONS ...................... 52" X 38D" X 66"H
LONGITUDINAL TABLE TRAVEL ON BALL BEARINGS DRIVEN BY A
TIMING BELT, WHICH ENCLOSES HIGH TENSILE STEEL CORES THAT
ENSURE SMOOTH TABLE MOVEMENT & LONGEVITY OF THE BELT.
PRECISION HARDENED & GROUND CROSSFEED LEADSCRW WITH
EXTRA WIDE SADDLE & TURCITE-B LINING DOUBLE VEE CROSSFEED
WAYS. THE DISTANCE BETWEEN 2V IS 19.6". THUS ASSURING
THE 18" TABLE MOVEMENT IS ALWAYS WITHIN THE MACHINE'S BASE.
HARDENED AND GROUND WAYS ON TABLE, SADDLE AND COLUMN
AUTOMATIC LUBRICATION SYSTEM, LOCATED IN THE MACHINE'S BASE
AUTO LUBE INDICATOR LOCATED JUST BELOW VERTICAL HANDWHEEL,
FINE-DIVISION PERMANENT MAGNETIC CHUCK
2 H.P. 3/60/230-460 VOLT HIGH PRECISION CARTRIDGE-TYPE
SPINDLE DRIVE MOTOR & ELECTRICAL CONTROLS
* * EXCEPTIONAL CONDITION & APPEARANCE (ORIGINAL PAINT) **
