> Transistor proto pcb w/ 2N3904 & 2N3906 (#2020)
Transistor proto pcb w/ 2N3904 & 2N3906 (#2020)
Transistor Proto PCB w/ 2N3904 & 2N3906 (#2020)

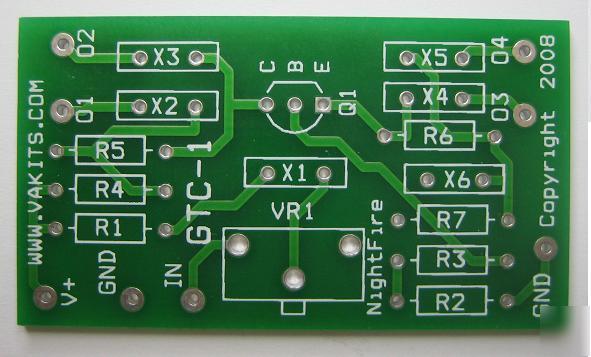

This is the Prototype Transistor PCB and 2N3904 & 2N3906 Transistor Design Kit. This kit is what you need to develop numerous different transistor circuits. It includes the extremely useful Prototype Transistor PCB, which was designed by us, and some of the very popular 2N3904 NPN & 2N3906 PNP Transistors in the standard leaded TO-92 package. You will also get a blank Prototype PCB with 162 holes, also designed by us, to expand your circuits.
The Prototype PCB is 1.13" x 2.0" made of FR-4 material, 0.062", with all holes plated-thru. The Blank Perf-Board is 1.14" x 2.10" and it made of FR-4 material, 0.062", with 162 Plated Thru-Holes. There are enough different parts to build many different types of transistor circuits. Search the web for incredible circuits to build. The Datasheets and Application Notes for the Transistors, along with hundreds of others, are located at DATASHEETS. We supply the parts, you supply the ingenuity. You get the following:
25K, Single-turn, Thru-Hole, PCB Mount
100K, Single-turn, Thru-Hole, PCB Mount
320K, Single-turn, Thru-Hole, PCB Mount
500K, Single-Turn, Thru-Hole, PCB Mount
5.0M, Single-Turn, Thru-Hole, PCB Mount
