New accura 01830 ram head milling machine- monster mill

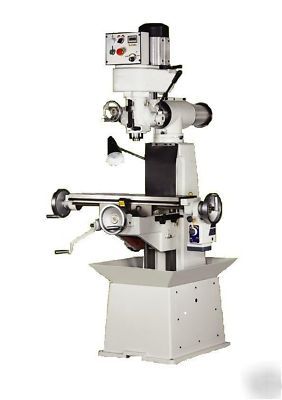

ACCURA 01830 RAM HEAD MILLING MACHINE
This is a sweet new "Ram Head" milling machine.
Spindle Taper MT3 or R8 or NT30
Spindle Max. Travel3-1/2" (88.9 mm)
Spindle Speed200~2250 RPM (Inverter)
Distance, Spindle To Table Surface ( Z)2-1/4"-20"(57-510 mm)
Size of Working Table 8"*30" (205*760mm)
T-Slots Size (Number) 3/8" (3 slots)
Maximum Longitudinal Travel (X) 18-1/2" (470 mm)
Maximum Cross Travel (Y) 8" (200 mm)
Distance, Vertical Travel of Table (Z) 18" (455 mm)
Lead Screw for Drill Chuck 1"*8 TPI or 3mm PITCH
Vertical Head Tilt Angle (R&L) 90
Ram Swiveling Angle 360 degrees
