> 470 pf @ 16 kv ceramic doorknob capacitor.lot of 10PCS

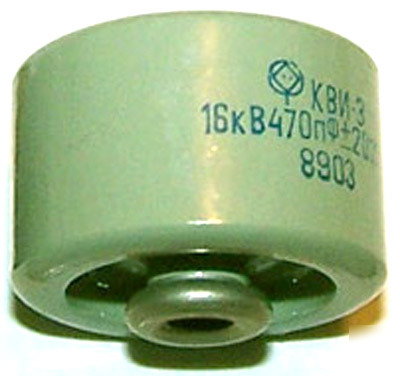

470 pf @ 16 kv ceramic doorknob capacitor.lot of 10PCS
High Voltage Doorknob Capacitors
New from the original factory box.
http://qro-parts.com/images/cap_doorcnob_470/3017.jpg
High quality Soviet production. Designed for Power HF applications. Feature low dissipation and excellent voltage-capacitance characteristics using the Strontium Titanate for dielectric. Perfectly for RF PA Up to 12kW !
MAX. WORKING Voltage: 16.000 VDC
MAX. WORKING current at f=30MHz: 15A (200 A pulse)
Dissipation factor at f=30MHz: <0,002
Insulation resistance: >10000 MOhm
Temperature of work: -60* +120*C (-76 to 248F)
Dimensions: 25x16 mm (0,98"D x 0,63"high)
This sale is for 10pcs. 470pF/16kV capacitors. Brand NEW!
