Synchro tapper stb-L108U automatic tapping system

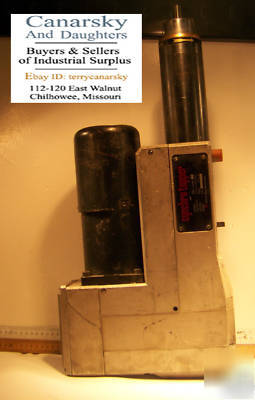

THIS LOT CONSISTS OF: 1 USED SYNCHRO TAPPER STB-L108U AUTOMATIC TAPPING SYSTEM. Spindle Type: 5/8-16 ASA, 3/4-12 ASA, Standard JT33. Total Stroke:0.47- 3.15 in, 12 - 80 mm. Fast Approach Stroke: 0.407 - 2.95 in, 10 - 75 mm. Pitch Feed Stroke: 0 - 1.57 in, 0 - 40 mm. Fast Stroke Speed: 4.13 in/s, 105 mm/s. Minimum Cycle Time (sec.): 2. Weight. 59.4 lb. 27 kgf. Tapping Capacity: Aluminium M12, Steel M10. Capacity # 0 Steel. Max Stroke 3.15 . 440 Volt HP. 1800 RPM. Twin Tapper Head. Feeds are automatically changed from rapid approach lo pitch feed to reverse feed on retract. This speed cycle greatly increases production capacity. Capable of class 3 thread accuracy. Feed rate is synchronized with tool rotation allowing thin or soft materials to be worked efficiently. Flexibility to meet your specifications. Easy adjustment for tap diameter, thread pitch and stroke length. Compact, versatile set-up. Compact size allows installation in small spaces and operation at any angle.Long stroke, a variety of attachments. Simple changeover from single tip head to multi- tap heads allows flexibility for use in either small lot or large production runs. I HAVE THREE OF THESE, ONE IS MISSING A PLATE, ONE IS MISSING SOME BOLTS, AND ONE IS ATTACHED TO WIRES. CONDITION: USED SURPLUS. NO REASONABLE OFFER REFUSED!
